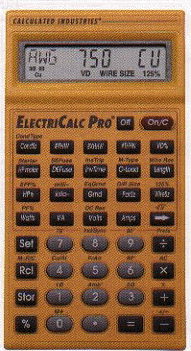

ElectriCalc® Pro
Click here for pricing and to order this item!

Electrical Code Calculator

Conforms to 1996 & 1999 NEC Code - Factory Updateable

The ElectriCalc® Pro is the world's most complete Code based electrical calculator. Is solves electrical calculations in seconds and delivers those solutions in conformance to current Code. It's a complete electrical reference tool that will save time, trouble and money. Now, factory updateable for future code revisions!

Calculates Wire Sizes per NEC® 310-16 and 310-17
Copper or aluminum, 30/10, 60 C, 75 C, 90 C insulation ratings at 100% or 125% of ampacity. Adjusts wire sizes for ambient temperatures other than 30 C and for more than three wires in a raceway.

Integrated Voltage Drop Solutions
Lets you find: Minimum VD wire size, maximum length for any given wire size and drop percentage, actual number and percentage of volts dropped.

Conduit Sizing for 12 Types of Conduit
Per 1999 NEC® Table C1 - C12, allows sizing of all common conduits for any combination of #THW, #XHHW, and #THHN wires. Plus, gives fill percentages, cross-sectional areas, remaining areas and more.

Find Motor Full-Load Amps per Current NEC®
Works in 10 and 30 with the new expanded tables for 30 Induction (to 500 hp) and synchronous (to 200 hp) motors per NEC® 430-148 and 430-150.

Computes Fuse and Breaker Sizes per NEC® 430-152
Built-in solutions for single and dual element fuses, instantaneous trip brekers and inverse time breakers.

One-Button Parallel and Derated Wire Sizing

Sizes Overload Protection per NEC® 430-32

Automaticaly Finds NEMA Starter Sizes

Calulates Services and Equipment Grounding Conductor Sizes per NEC® 250-122 and 250-66

Works Directly In:
Volts, Amps, Volt-Amps, Watts, kVA, kW, PF%, EFF% and DC Resistance for fast, accurate solutions to all your electrical calculations.

Works as s Standard Math Calculator
with +/-. %, Square Root, %, Memory (+/-), x' and Auto-Shut off

ElectriCalc® Pro Specifications

---

Size: 5.5" x 2.9" x 0.5" (140mm x 74mm x 13mm)

---

Weight: 3.2 oz (91 gm) - does not include Vinyl Case of User's Guide

---

Power: Single 3-volt (CR-2032) Long-life Lithium Battery

---

Display: 8 digits with Full Annunciators

---

LCD Dimensions: 0.563" x 2.25" (14 mm x 57mm)

---

Included with every CH Product: Easy to understand User's Guide, Protective Carrying Case, Long-life Batteries

---

One-Year Warranty: All Caclulated Industries calculators and electronic tools are covered by a Full One-Year Limited Warranty agains defects in materials and workmanship. The full text of each warranty is published int he documentation accompanying each product. Calculated Industries reserves the right to make changes in the materials and specifications of products without notice.

---
